High Precision Ceramic Piston Pump with ±0.5% Accuracy and ±0.1% Repeatability for Food-Grade Applications

High Precision Ceramic Piston Pump with ±0.5% Accuracy and ±0.1% Repeatability for Food-Grade Applications
High Precision Ceramic Piston Pump with ±0.5% Accuracy and ±0.1% Repeatability for Food-Grade Applications
High Precision Ceramic Piston Pump with ±0.5% Accuracy and ±0.1% Repeatability for Food-Grade Applications High Precision Ceramic Piston Pump with ±0.5% Accuracy and ±0.1% Repeatability for Food-Grade Applications High Precision Ceramic Piston Pump with ±0.5% Accuracy and ±0.1% Repeatability for Food-Grade Applications High Precision Ceramic Piston Pump with ±0.5% Accuracy and ±0.1% Repeatability for Food-Grade Applications High Precision Ceramic Piston Pump with ±0.5% Accuracy and ±0.1% Repeatability for Food-Grade Applications High Precision Ceramic Piston Pump with ±0.5% Accuracy and ±0.1% Repeatability for Food-Grade Applications High Precision Ceramic Piston Pump with ±0.5% Accuracy and ±0.1% Repeatability for Food-Grade Applications High Precision Ceramic Piston Pump with ±0.5% Accuracy and ±0.1% Repeatability for Food-Grade Applications High Precision Ceramic Piston Pump with ±0.5% Accuracy and ±0.1% Repeatability for Food-Grade Applications High Precision Ceramic Piston Pump with ±0.5% Accuracy and ±0.1% Repeatability for Food-Grade Applications High Precision Ceramic Piston Pump with ±0.5% Accuracy and ±0.1% Repeatability for Food-Grade Applications High Precision Ceramic Piston Pump with ±0.5% Accuracy and ±0.1% Repeatability for Food-Grade Applications High Precision Ceramic Piston Pump with ±0.5% Accuracy and ±0.1% Repeatability for Food-Grade Applications High Precision Ceramic Piston Pump with ±0.5% Accuracy and ±0.1% Repeatability for Food-Grade Applications High Precision Ceramic Piston Pump with ±0.5% Accuracy and ±0.1% Repeatability for Food-Grade Applications High Precision Ceramic Piston Pump with ±0.5% Accuracy and ±0.1% Repeatability for Food-Grade Applications
Temel bilgi
Menşe yeri: Çin
Marka adı: XQ
Sertifika: CE
Model numarası: XQQGS
Min sipariş miktarı: 1 takım
Fiyat: USD 2000 Per Set
Ambalaj bilgileri: Ahşap paketleme
Teslim süresi: 20 gün
Ödeme koşulları: T/T
Yetenek temini: Ayda 100 Set
En iyi fiyat Şimdi başvurun
Tahrik mod: Tam elektrikli kontrol Satış sonrası hizmet: Video desteği ve yedek parça
Pompa hızı: 40-50 kere/dakika Hava basıncı: 0.4-0.6mpa
Uygulama alanı: Gıda, Tıbbi, Kimyasal, Ticaret Pompa boyutu: 60*15*15 cm
Vurgulamak:

±0.5% Accuracy Ceramic Piston Pump

,

±0.1% Repeatability Ceramic Filling Pump

,

Food-Grade Ceramic Plunger Pump

High Precision Industrial Ceramic Piston Pump – Durable for Large-Scale Production Lines
Servo Driven High Precision Ceramic Piston Pump With Automatic Volume Adjusting For Cream Paste Jam Filling
Parameter of High Precision Industrial Ceramic Piston Pump
Model XQQGS-12 XQQGS-25 XQQGS-50 XQQGS-100
Pump head High purity ceramics
Filling accuracy ≦±0.5%
Filling range 1-12ml 2-25ml 5-50ml 10-100ml
Manufacturing speed 0-50 Bottle/min
Size of the pump 50*15*15 cm
Power AC 220V 50-60Hz 50W
Air pressure 0.4-0.6Mpa
Motor type Step motor/ servo motor

The ceramic plunger pneumatic pump assembly adopts a precision ceramic plunger design, which is suitable for the quantitative infusion of medium and high viscosity liquids, creams, and creams (1000-100,000CPS) and materials containing certain particles.

Feature of High Precision Industrial Ceramic Piston Pump

The Food-Grade Ceramic Piston Filling Pump is a precision solution for the food and beverage industry. It handles diverse products--syrups, sauces, honey, pastes--with exceptional accuracy, hygiene, and reliability, ideal for sensitive, high-value formulations.

1. Precision Engineered for Food & Beverage Excellence

Its core rotary-to-linear mechanism uses a ceramic piston in a food-grade sleeve; stroke length is adjusted via pump head angle. This ensures accurate, repeatable displacement, eliminating pulsation and inconsistency of conventional pumps.

Gentle Handling

Smooth rotation enables steady, non-aerating flow, preserving quality of honey, emulsions, and fruit pulps.

Superior Precision

±0.5% accuracy and ±0.1% repeatability reduce product waste, cutting costs for high-value ingredients.

2. Built for Hygiene, Safety, and Durability

Made of food-compliant materials, it's easy to clean and durable for harsh food production environments.

Ceramic Piston

Wear-resistant, inert, and ultra-smooth, it resists sticking and simplifies cleaning--even for honey or chocolate.

Food-Grade Parts

316L stainless steel and PEEK/PTFE wetted components offer corrosion resistance for acidic/saline foods.

3. Seamless Integration into Production Lines

This pump acts as a ready-to-integrate complete filling system, not just a component.

Smart Control

Interfaces with PLC/SCADA via analog/digital (RS485/Modbus) for quick recipes, data logging, and sync.

Easy Maintenance

Rapid disassembly supports CIP/SIP, minimizing downtime and meeting hygiene standards.

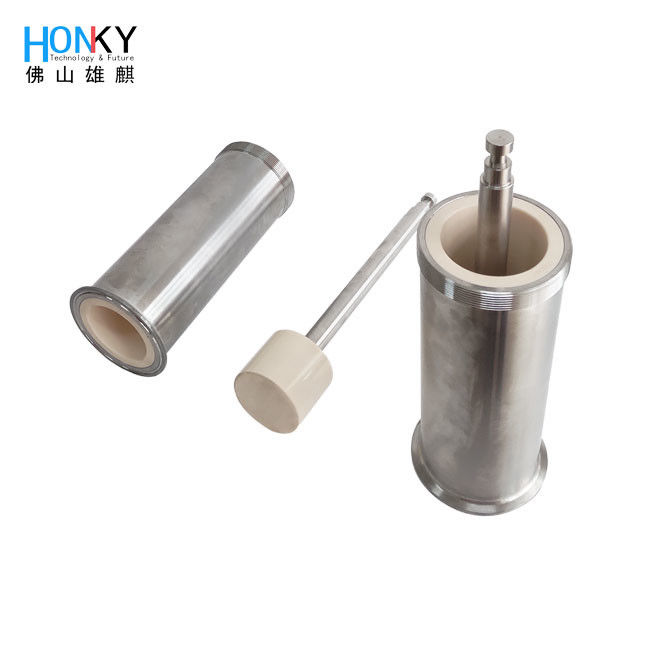

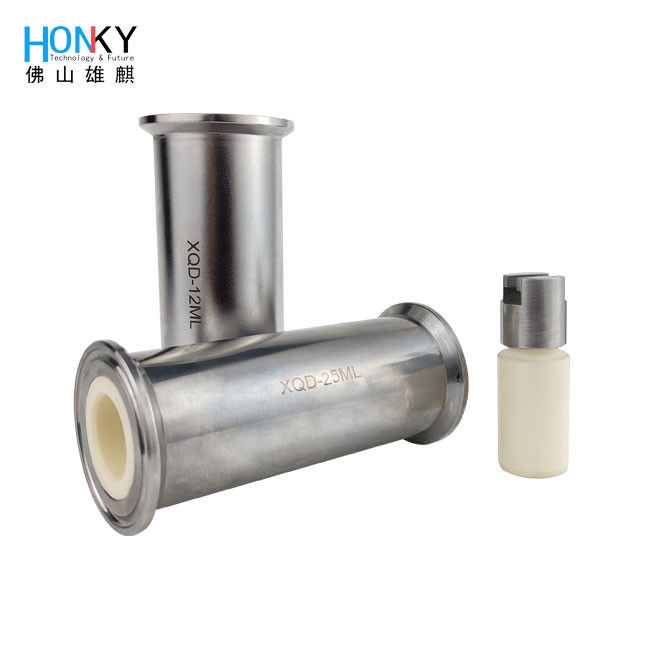

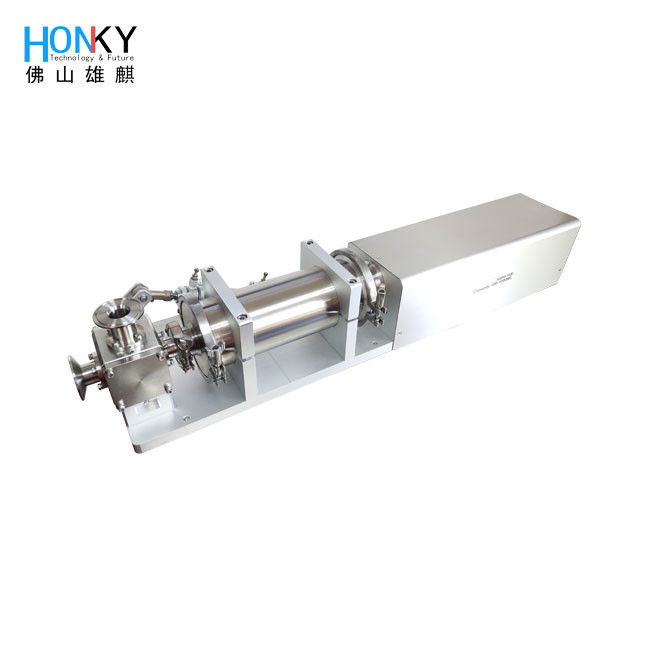

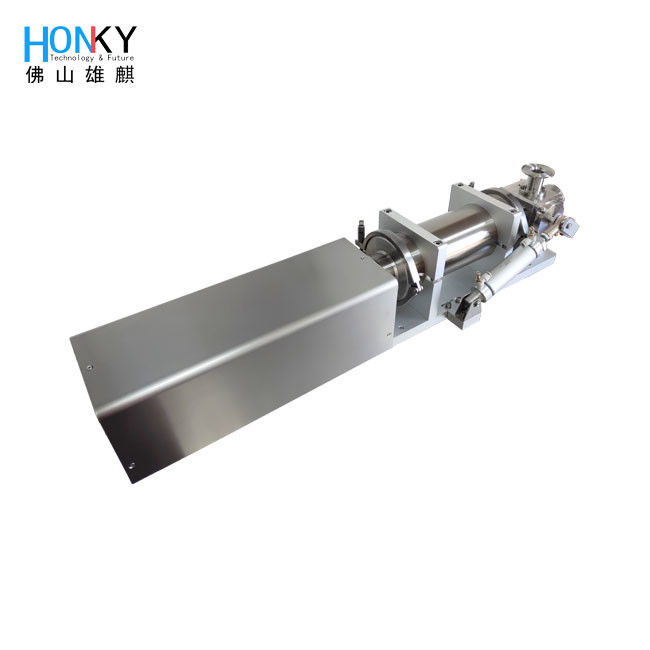

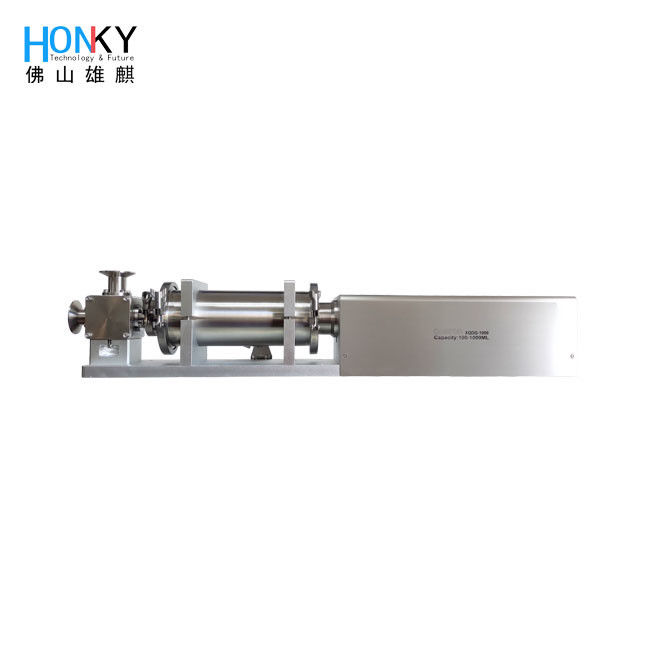

Product display of High Precision Industrial Ceramic Piston Pump
High Precision Ceramic Piston Pump with ±0.5% Accuracy and ±0.1% Repeatability for Food-Grade Applications 0
High Precision Ceramic Piston Pump with ±0.5% Accuracy and ±0.1% Repeatability for Food-Grade Applications 1
Application area
  • ODM and OEM products design
  • Automatic manufacturing line design
  • Cosmetic product packing
  • Pharmaceutical and bio-reagent product packing
  • Laboratory Liquid dispensing
  • Lithium Battery Liquid dispensing
  • Ceramic pump and ceramic pump part design
  • Other area's material filling
Q & A
Q: Do you offer OEM services, I am a distributor from overseas?
A: Yes, we can offer both OEM Services and technical support. Welcome to start your OEM business.
Q: How about the after-sales service?
A: The machine is a 1-year warranty. And we offer lifetime after-sale service and technical support.
Q: What are your Installation Services?
A: Installation Services are available with all new machine purchases. We will provide the user manual and videos to support installing, debugging, operation of the machine, which will indicate to you how to use this machine well.
Q: What info will be needed to confirm machine models?
A:
  • The material status
  • Filling range
  • Manufacturing speed
  • Requirements for the production process
